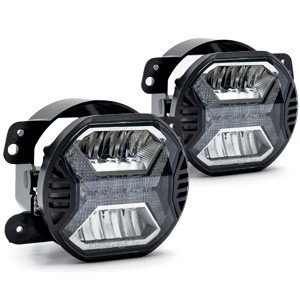

Fog Lights

COMPATIBILITY

- Vehicles 8-32V (CAR, TRUCK) with 3.5 Inch (90MM) round headlights
- Distance Between Fixing Holes (4 Holes): Width: 100mm - Height: 50m


ASSEMBLY INSTRUCTIONS:

1) Remove the old Fog Lights, and disconnect them, or create the accommodation for the new Fog Lights
2) Connect the supplied cables to the fog light, as explained in point 3:
3) Connect the control unit to the fog light using the round 4-pin plug (remember, the wiring diagram is shown on the control units)
FROM THE CONTROL UNIT THERE IS A DIRECTION OF TWO CABLES, respectively:
- a cable H8 - H11 - H9 - H16, which will be connected to the car power supply (This socket also acts as a Negative Pole, in fact, if not connected, the DRLs will not turn on)
- a double color cable (yellow-red), to which it will be necessary to connect the yellow-red extension cable, also supplied (this cable will be the power supply of the DRL lights)
4) Connect the Red Cable to the positive pole of the Battery
5) Connect the Yellow Cable to the negative pole of the battery, or to the negative pole of the headlights
6) Connect the second fog light to the second control unit, as already done for the first fog light
7) In this case, at the branch of the double cable of the control unit, the yellow-red cable must be connected in a chain to the wiring of the first spot, using the plug, on the yellow-red cable


FOR OPTIMUM ASSEMBLY, WE ALWAYS RECOMMEND INSTALLATION BY AN EXPERT


- the fixture has a socket H8 - H11 - H9 - H16> 9005 - HB3 - H10> 9006 - HB4, therefore in most cases it will not be necessary to make changes to the wiring, the PLUG AND PLAY rule will apply (connection only)

On some cars, it may be necessary to make small changes during installation. We always trust in your common sense.



We do not take responsibility for: erroneous purchases - violations of regulations or laws of any state - damages, which you may cause to you, to third parties or to the same article, as we describe each individual specification in detail. WE WILL NOT ACCEPT RETURNS FOR INCOMPATIBILITY or WRONG PURCHASES

COMPATIBILITY:

- Jeep Wrangler JK (2007-2018)
- Jeep Wrangler TJ (1997-2007)
- Jeep Wrangler JL (from 2018)
- Jeep Grand Cherokee (2011-2013)
- Jeep Cherokee KL (2013-2019)
- Dodge Journey (2008-2010)
- Dodge Magnum (2004-2008)
- Dodge Charger IV (2011-2014)
- Chrysler PT Cruiser Facelift (2006-2010)
- Chrysler 300 (2004-2011) - Touring version or Limited Models ONLY
- Fiat Freemont (2011-2018)
- Hummer H1 (1992-2006)
- Hummer H2 (2003-2009)


- 9-12V Vehicles with 4 Inches (98MM) Round Fog Lights
- Distance between fixing holes (4 holes): Width: 100,4mm - Height: 60m


ASSEMBLY INSTRUCTIONS: we always recommend installation by an EXPERT

1) Remove the old fog lights and disconnect them
2) On the new LED fog lights there are 2 cables respectively:
- H8 - H11- H9 - H16 socket for Plug & Play connection to the vehicle (fog light power supply)
- Yellow cable to connect to any vehicle light power supply (DRL light power supply)
3) Align the 4 holes by bolting the fog light body into the housing


For vehicles that do not have an H8 -H9-H11-H16 socket:

An adapter cable is supplied to connect to the socket of the new LED fog lights, this wiring ends with a positive wire (red) and a negative wire (black) which will be connected to the power supply of the old fog lights.



We do not take responsibility for: erroneous purchases - violations of regulations or laws of any state - damages, which you may cause to you, to third parties or to the same article, as we describe each individual specification in detail. WE WILL NOT ACCEPT RETURNS FOR INCOMPATIBILITY or WRONG PURCHASES

COMPATIBILITY

- JEEP WRANGLER JK
- Vehicles (CAR AND MOTORCYCLE) with 7-inch round spotlight
- Compatibility codes: Jeep Part # 5182026AA


FOR OPTIMAL MOUNTING, WE ALWAYS RECOMMEND THE INSTALLATION BY AN EXPERT
- the headlamp has the same socket of your foglight, therefore in won' t be necessary to make modifications to cables, just PLUG AND PLAY




We do not take responsibility for: erroneous purchases - violations of regulations or laws of any state - damages, which you may cause to you, to third parties or to the same article, as we describe each individual specification in detail. WE WILL NOT ACCEPT RETURNS FOR INCOMPATIBILITY or WRONG PURCHASES
